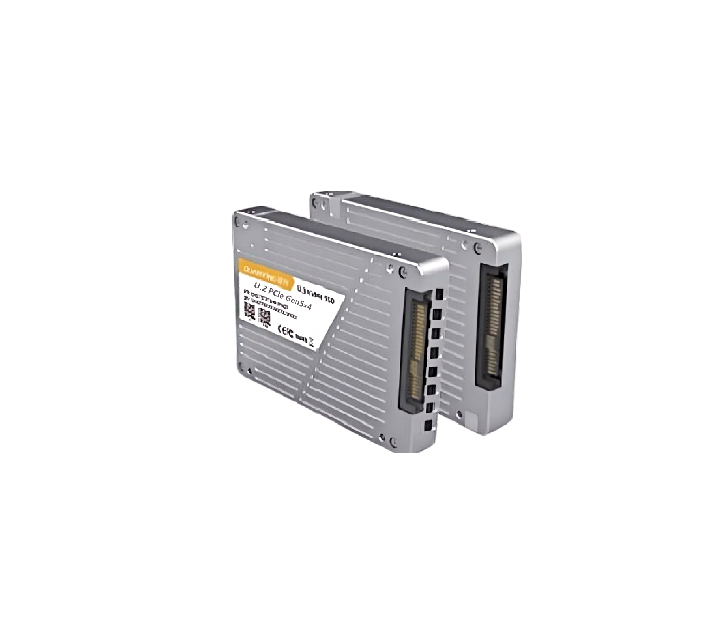

U2 DISK
The U2 DISK offers a massive capacity of up to 122.88TB. Leveraging an advanced 6nm PCIe 5.0 controller and 2Tb 3D QLC NAND flash, it delivers twice the data throughput of PCIe 4.0. With quadruple the capacity of traditional HDDs in a more compact footprint, it significantly optimizes data center power, space, and cooling efficiency, effectively reducing Total Cost of Ownership (TCO) to meet the demanding requirements of diverse data-intensive workloads.
Products Specification
| Form | U.2 | |||||
| Interface | PCle 5.0×4(single port×4lanes /dual port×2lanes) | |||||
| Flash | 3D eTLC | |||||
| Volume | 1.92TB | 3.84TB | 7.68TB | 15.36TB | 30.72TB | |
| Performance | Order reading（MB/s） | 14800 | 14800 | 14800 | 14800 | 14800 |
| Order writing（MB/s） | 4300 | 8600 | 8700 | 8350 | 8350 | |
| 4KB Random Read（IOPS） | 2,400K | 3,000K | 3,000K | 3,000K | 3,000K | |
| 4KB Random writing（IOPS） | 170K | 380K | 500K | 500K | 500K | |
| power dissipation | Max | 25W | 25W | 25W | 30W | 35W |
| Free | 5W | 5W | 5W | 5W | 5W | |
| Delay | 4K Random Read | 60μs | 60μs | 60μs | 60μs | 60μs |
| 4K Random writing | 10μs | 10μs | 10μs | 10μs | 10μs | |
| TBW(TB) | 3504 | 7008 | 14016 | 28032 | 56064 | |
| DWPD | 1 | |||||
| UBER | <1 sector per 1018bits | |||||
| MTBF | >2,500K hours | |||||
| Working Temperature | 0℃~70℃ | |||||
| Storage Temperature | -40℃~85℃ | |||||
| Voltage | 12V±10% | |||||
