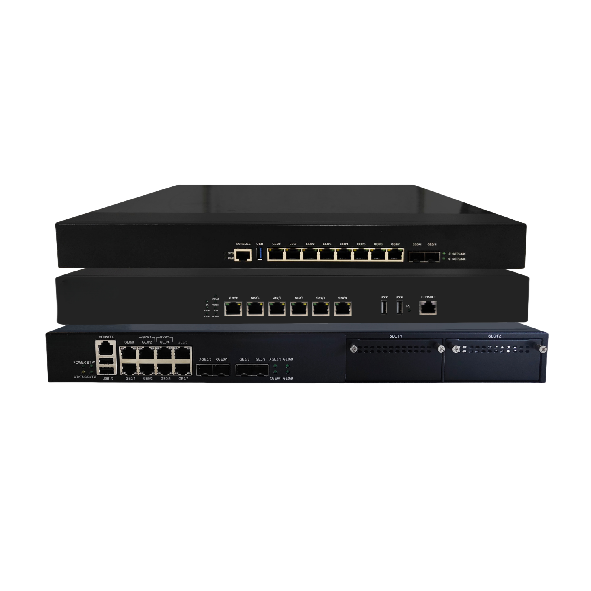

Z-FW-1800-Series

FIREWALL

Z-FW-1800-Series

The ZRJ Next Generation Firewall (NGFW) adopts high-performance architecture, provides rich hardware specifications, supports advanced virtualization technology, and adapts to various cloud environments. It integrates multi-dimensional precise control based on identity, application, content, assets, etc., and can comprehensively protect against various network threats such as denial of service attacks, brute force cracking, scanning and sniffing, intrusion attacks, malicious code, etc., and quickly build a cost-effective, efficient and integrated security protection hub for users.

Products Specification

Item	Z-FW-1800E-X8430	Z-FW-1800E-X6024R	Z-FW-1800E-X6012R	Z-FW-1800E-X3012R
Hardware Specification
Interface	6GE+4SFP	16GE+4SFP+4SFP+	8GE+2SFP+2SFP+	8GE+2SFP
USB	2	2	2	1
Console	1	1	1	1
CF card	4G CF	8GB EMMC	8GB EMMC	8GB EMMC
Management	1MGT, 1HA	N/A	N/A	N/A
Bypass (pairs)	16	2	2	N/A
Bypass feature	4GE: 0<->1；2<->3 8GE:0<->1；2<->3；4<->5；6<->7 4GE4SFP:4<->5；6<->7	GE0/2<->GE0/3 GE0/4<->GE/5	GE0/2<->GE0/3 GE0/4<->GE/5	N/A
Slot	3	2	2	N/A
Module(optional)	8GE 8SFP 4GE+4SFP 4SFP+	8GE 8SFP 4GE+4SFP 4SFP+	8GE 8SFP 4GE+4SFP 4SFP+	N/A
hard disk(optional)	1TB	1TB	1TB	N/A
Security Performance
IPS throughput	8G	2.5G	2G	300M
AV throughput	8G	2.5G	2G	300M
NGFW throughput	55G	20G	10G	2.1G
System performance (throughput)
1518 bytes	55G	20G	10G	2.1G
512 bytes	25G	7.6G	7.5G	720M
64 bytes	4.4G	1.2G	1.1G	110M
New sessions per second
New sessions (TCP)	420000	140000	140000	18000
New sessions (HTTP)	320000	117000	117000	11000
New sessions (APP enabled)	200000	47000	47000	3800
New session (APP\IPS\AV enabled)	86000	19000	19000	1400
Concurrent sessions
Concurrent sessions (APP disabled)	8000000	4000000	4000000	1000000
Concurrent sessions (APP enabled)	5700000	2300000	2300000	700000
Concurrent sessions (APP\IPS\AV enabled)	5700000	2300000	2300000	700000
IPSec VPN performance
IPSec tunnels	10000	10000	10000	2300
1400 bytes (without accelerator card)	5.6G	3.5G	3.4G	450M
SSL VPN performance
New VPN Tunnels (clients) per second	150	130	130	15
Maximum concurrent users	10000	3000	3000	1200
Throughput	1000M	770M	770M	125M
Physical and electrical specifications
*Dimension(WDH)*	55044088mm	44045044mm	44045044mm	44033044mm
AC power supply	dual AC	dual AC	dual AC	dual AC
Power consumption	350W	120W	120W	30W
Power redundancy	1+1	1+1	1+1	1+1
Power input	110～240V	100～240V	100～240V	100～240V
Lightning and surge protection level	PSU: common mode: ±2kV，differential mode: ±1kV； Ethernet interface: ±1kV	PSU: ±6KV@1.2/50us Ethernet interface: ±4KV@10/700us	PSU: ±6KV@1.2/50us Interface: ±4KV@10/700us	PSU: ±2.5KV@1.2/50us Interface: ±4KV@10/700us
Weight	17KG	5.32KG	5.24KG	3.7KG
Environment
Operating temperature	0～40℃	0～40℃	0～40℃	0～40℃
Storage temperature	-20～70℃	-25~70℃	-25~70℃	-40~70℃
Operating humidity	5%～85%, non-condensing	5%～90%, non-condensing	5%～90%, non-condensing	5%～85%, non-condensing
Storage humidity	5%～95%, non-condensing	5%～95%, non-condensing	5%～90%, non-condensing	5%～95%, non-condensing

Item	Z-FW-1800E-E12	Z-FW-1800E-E8	Z-FW-1800E-E4	Z-FW-1800E-E2
Hardware Specification
Interface	8GE+2SFP+2SFP+	4GE+2SFP	8GE+2SFP	5GE+1COMBO
USB	2	1	1	1
Console	1	1	1	1
CF card	8GB EMMC	32GB mSATA	8GB EMMC	8GB EMMC
Management	N/A	1MGT	N/A	N/A
Bypass (pairs)	2	1	N/A	N/A
Bypass feature	GE0/2<->GE0/3 GE0/4<->GE/5	fixed port:GE0/2<->GE0/3	N/A	N/A
Slot	2	N/A	N/A	N/A
Module(optional)	8GE 8SFP 4GE+4SFP 4SFP+	N/A	N/A	N/A
hard disk(optional)	1TB	1TB	N/A	N/A
Security Performance
IPS throughput	2G	800M	300M	300M
AV throughput	2G	800M	300M	300M
NGFW throughput	10G	6G	2.1G	2.1G
System performance (throughput)
1518 bytes	10G	6G	2.1G	2.1G
512 bytes	7.5G	4G	720M	720M
64 bytes	1.1G	0.65G	110M	110M
New sessions per second
New sessions (TCP)	140000	40000	18000	18000
New sessions (HTTP)	117000	30000	11000	11000
New sessions (APP enabled)	47000	18000	3800	3800
New session (APP\IPS\AV enabled)	19000	9000	1400	1400
Concurrent sessions
Concurrent sessions (APP disabled)	4000000	1000000	1000000	450000
Concurrent sessions (APP enabled)	2300000	600000	700000	240000
Concurrent sessions (APP\IPS\AV enabled)	2300000	600000	700000	240000
IPSec VPN performance
IPSec tunnels	10000	5000	2300	1000
1400 bytes (without accelerator card)	3.4G	650M	450M	380M
SSL VPN performance
New VPN Tunnels (clients) per second	130	30	15	15
Maximum concurrent users	3000	3000	1200	180
Throughput	770M	200M	125M	125M
Physical and electrical specifications
*Dimension(WDH)*	44033044mm	36044044mm	44033044mm	24018228mm
AC power supply	AC	AC	AC	AC
Power consumption	100W	60W	30W	18W
Power redundancy	N/A	N/A	N/A	N/A
Power input	100～240V	110～240V	100～240V	100～240V
Lightning and surge protection level	PSU: ±6KV@1.2/50us Interface: ±4KV@10/700us	PSU: ±2.5KV@1.2/50us Ethernet interface: ±4KV@10/700us	PSU: ±2.5KV@1.2/50us Interface: ±4KV@10/700us	PSU: ±2.5KV@1.2/50us Interface: ±4KV@10/700us
Weight	4.44KG	4kg	3.5KG	1.24KG
Environment
Operating temperature	0～40℃	0～45℃	0～40℃	0～40℃
Storage temperature	-25~70℃	-40～70℃	-40~70℃	-40～70℃
Operating humidity	5%～90%, non-condensing	5%～90%, non-condensing	5%～85%, non-condensing	5%～85%, non-condensing
Storage humidity	5%～90%, non-condensing	5%～90%, non-condensing	5%～95%, non-condensing	5%～95%, non-condensing

Datasheet

ZRJ Z-FW-1800E Series Next Generation Firewall Datasheet V2.0 下载
