SERVER
R620 Z50M
The R620 Z50M is a 2U rack server powered by 4th or 5th Gen Intel® Xeon® Scalable processors, offering flexible performance and scalability. It is designed to strike a balance between performance and cost, meeting the diverse needs of a wide range of customers. Ideal for application scenarios such as cloud computing, virtualization, big data processing, and office systems.
Products Specification
| Processor | Supports 2*4th/5th Gen Intel® Xeon® Scalable Processors . |
| Memory | 16*DDR5 slots, up to 5600MHz. Supports multiple protection modes such as memory ECC and memory mirroring. |
| Storage Controller | Supports RAID 0/1/10/5/50. When configuring RAID control, it can support Cache supercapacitor protection, provide RAID level migration, disk roaming, self diagnosis, web remote settings and other functions, and support RAID secure boot. |
| Local Storage | Max 12*3.5″ and 2*2.5″ drives (12* NVMe compatible). Internal: 2* M.2 |
| Network Interfaces | Onboard 2*Gigabit RJ45 interfaces1*OCP 3.0 slot with NCSI. |
| PCIe Expansion | 5*PCIe 5.0 slots+1*PCIe 4.0 slots . |
| Additional Interfaces | Rear: 1*RJ-45 management port, 2*USB 3.0, 1*VGA. Front: Optional 2*USB 3.0 + VGA or USB 2.0 |
| Power Supply | 800W/1300W/2000W/2200W CRPS Titanium/Platinum PSU (hot-swappable, 1+1 redundant).Voltage: 100-240Vac (refer to nameplate). |
| Fans | 3*hot-swappable fans. |
| Management | Integrated BMC with 1Gbps RJ-45 port. Supports Redfish, SNMP, IPMI 2.0, HTML5/iKVM remote control. BMC dual-flash backup. |
| OS Support | Windows Server, RHEL, SLES, CentOS, Ubuntu, VMware ESXi, Kylin, RedFlag, etc. |
| Operating Temperature | 5°C ~ 45°C |
| Chassis Dimensions | 723mm (L)* 482mm (W)*87mm (H). (with ears) |
| Packaging Dimensions | 1000mm (L)*600mm (W)*260mm (H). |
| Weight | Max 40kg (varies by configuration). |

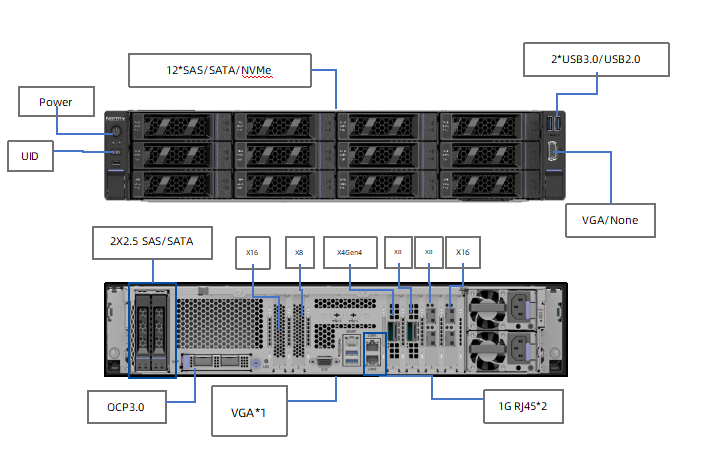

Products Views
Products Features
- Supports 2 4th/5th generation Intel chips ® Xeon ® Scalable processor and built-in accelerator provide powerful performance for various businesses.
- Equipped with 16 DDR5 memories, the memory bandwidth is increased by 50%
- Compatible with 12 3.5-inch and 2 2.5-inch hard drives, compatible with NVMe SSDs, meeting various storage configurations.
- Provide 2 Gigabit Ethernet ports, 1 OCP 3.0, and 6 PCIe expansion slots for flexible expansion.
Order Information
| Part Number | Product Configuration | ||
| Front Configuration | Rear Configuration | Kits | |
| A12000 NN2N | 12*3.5″ drives（SATA/SAS）2*USB3.0+1*VGA | 2*2.5″ drives（SATA/SAS）1*RJ45 Management Interface，2*USB3.0，1*VGA 3*x8+2*x16 PCIE 5.0，1*x4 PCIE 4.0，2*1G Electric port 1300W Redundant Power | 2*Heat Sinks，TDP＜270W 2*raid card connection cable，adapted to 95 series raid cards 12*3.5 hard drive brackets，compatible with 2.5″ drives 2*2.5 inches hard bracket |
| E12000 NN2N | 12*3.5″ drives（SATA/SAS）EXP2*USB3.0+1*VGA | 2*2.5″ drives（SATA/SAS）1*RJ45 Management Interface，2*USB3.0，1*VGA 3*x8+2*x16 PCIE 5.0，1*x4 PCIE 4.0，2*1G Electric port 1300W Redundant Power | 2* Heat Sinks，TDP＜270W1*raid card connection cable，adapted to 95 series raid cards12*3.5 hard drive brackets，compatible with 2.5″ drives2*2.5 hard drive brackets |
| N12000 NN2N | 12*3.5″ drives（SATA/SAS/NVME）2*USB3.0+1*VGA | 2*2.5 ” drives（SATA/SAS）1*RJ45 Management Interface，2*USB3.0，1*VGA 3*x8+2*x16 PCIE 5.0，1*x4 PCIE 4.0，2*1G Electric port 1300W Redundant Power | 2* Heat Sinks，TDP＜270W2*raid card connection cable，adapted to 95 series raid cards12*3.5 hard drive brackets，compatible with 2.5″ drives2*2.5 hard drive brackets |
