SERVER
R820 Z50M
The R820 Z50M is a premium 2U rack server powered by 4th/5th Gen Intel® Xeon® Scalable processors. Designed for flexible resource allocation to meet diverse industry demands, it excels in cloud computing, HPC, cloud storage, big data, virtualization, enterprise systems, and more.
Products Specification
| Model | R820 Z50M |
| Processor | Supports 2*4th/5th Gen Intel Xeon® Scalable Processors (TDP 385W). |
| Memory | 32*DDR5 slots, up to 5600MHz.Supports memory mirroring, hot spare, fault isolation, and XL expansion (additional 16 slots). |
| Storage Controller | Supports RAID 0/1/10/5/50/6/60.Features 4G/8G cache supercapacitor protection, disk roaming, remote Web configuration, secure boot, solid-state algorithms, and serial port remote debug. |
| Local Storage | Max 16*3.5″ or 28*2.5″ drives (24x NVMe compatible).Internal: 2*SATA/PCIe M.2, 1 *onboard eMMC.Onboard support for 16*SATA drives (no external controller required). |
| Network Interfaces | 1*OCP 3.0 slot with NCSI.Optional interfaces: 2*1GE, 2*10GE, 2*25GE, 2* 100GE, 2*200GE. |
| PCIe Expansion | 8*PCIe 5.0 slots + 1*OCP 3.0 slots. |
| Additional Interfaces | Rear: 1*RJ-45 management port, 2*USB 3.0, 1*VGA.Front: Optional 2*USB 3.0 + VGA or USB 2.0. Internal: 1*USB 3.0. |
| Power Supply | 800W/1300W/2000W/2700W CRPS Titanium/Platinum PSU (hot-swappable, 1+1 redundant). Voltage: 100-240Vac (refer to nameplate). |
| Fans | 6*hot-swappable fans (N+2 redundancy). |
| Management | Integrated BMC with 1Gbps RJ-45 port.Supports Redfish, SNMP, IPMI 2.0, HTML5/iKVM remote control.BMC dual-flash backup. |
| OS Support | Windows Server, RHEL, SLES, CentOS, Ubuntu, VMware ESXi, Kylin, RedFlag, etc. |
| Operating Temperature | 5°C ~ 45°C |
| Chassis Dimensions | 770mm (L)*446mm (W) (without ears) / 482mm (W) (with cars) *87mm (H). |
| Packaging Dimensions | 1000mm (L)*600mm (W)*260mm (H). |
| Weight | Max 40kg (varies by configuration). |

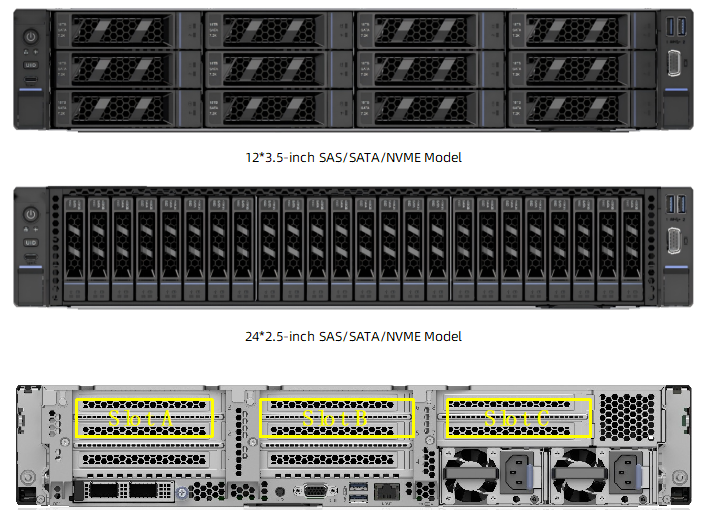

Product View
Product Features
- Supports 2*4th/5th Gen Intel® Xeon® Scalable processors, up to 64 cores per CPU for unparalleled computing power.
- 32*DDR5 DIMM slots, 5600MHz max frequency, 75% memory bandwidth increase.
- Up to 16*3.5″ or 28*2.5″ drives, NVMe SSD compatibility for customizable storage.
- Flexible expansion with OCP NICs and PCIe slots (supports PCIe 5.0, 100% faster transfer rates).
Order Information-12 Slots
| Part Number | Product Configuration | ||
| Front Configuration | Rear Configuration | Kits | |
| A12000 ABNN | 12*3.5″ drives（SATA/SAS）2*USB3.0+1*VGA | 4*x8+2*x16 PCIE 5.01*RJ45 Management Interface2*USB3.01*VGA 1300W Redundant Power | 2* Heat Sinks，TDP≥270W 2*raid card connection cable，adapted to 95 series raid cards 12*3.5 hard drive brackets，compatible with 2.5″ drives |
| A12000 ABCN | 12*3.5″ drives（SATA/SAS）2*USB3.0+1*VGA | 6*x8+2*x16 PCIE 5.01*RJ45 Management Interface2*USB3.01*VGA 1300W Redundant Power | 2* Heat Sinks，TDP≥270W 2*raid card connection cable， adapted to 95 series raid cards 12*3.5 hard drive brackets，compatible with 2.5″ drives |
| A12000 ABN2 | 12*3.5″ drives（SATA/SAS）2*USB3.0+1*VGA | 2*2.5″ drives（SATA/SAS）4*x8+2*x16 PCIE 5.01*RJ45 Management Interface2*USB3.01*VGA 1300W Redundant Power | 2*heat sinks，TDP≥270W 2*raid card connection cable， adapted to 95 series raid cards 12*3.5 hard drive bracket，compatible with 2.5″ drives 2*2.5 hard drive brackets |
| A12000 AB22 | 12*3.5″ drives（SATA/SAS）2*USB3.0+1*VGA | 4*2.5″ drives（SATA/SAS/NVME）4*x8+2*x16 PCIE 5.01*RJ45 management interface2*USB3.01*VGA 1300W redundant power | 2* Heat Sinks，TDP≥270W 2*raid card connection cable， adapted to 95 series raid cards 12*3.5 hard drive bracket，compatible with 2.5″ drives 4*2.5 inches hard bracket |
| A12000 ABC2 ( Custom) | 12*3.5″ drives（SATA/SAS）2*USB3.0+1*VGA | 2*2.5″ drives（SATA/SAS）6*x8+2*x16 PCIE 5.01*RJ45 management interface2*USB3.01*VGA 1300W redundant power | 2* Heat Sinks，TDP≥270W 2*raid card connection cable，adapted to 95 series raid cards 12*3.5 hard drive brackets，compatible with 2.5″ drives 2*2.5 hard drive brackets |
| E12000 ABNN | 12*3.5″ drives（SATA/SAS）EXP2*USB3.0+1*VGA | 4*x8+2*x16 PCIE 5.01*RJ45 management interface2*USB3.01*VGA 1300W redundant power | 2* Heat Sinks，TDP≥270W 1*raid card connection cable，adapted to 95 series raid cards 12*3.5 hard drive brackets，compatible with 2.5″ drives |
| E12000 ABCN | 12*3.5″ drives（SATA/SAS）EXP2*USB3.0+1*VGA | 6*x8+2*x16 PCIE 5.01*RJ45 management interface2*USB3.01*VGA 1300W redundant power | 2* Heat Sinks，TDP≥270W 1*raid card connection cable，adapted to 95 series raid cards 12*3.5 hard drive brackets，compatible with 2.5″ drives |
| E12000 ABN2 | 12*3.5″ drives（SATA/SAS）EXP2*USB3.0+1*VGA | 2*2.5″ drives（SATA/SAS）4*x8+2*x16 PCIE 5.01*RJ45 management interface2*USB3.01*VGA 1300W redundant power | 2* Heat Sinks，TDP≥270W 1*raid card connection cable，adapted to 95 series raid cards 12*3.5 hard drive brackets，compatible with 2.5 ” drives 2*2.5 hard drive brackets |
| E12000 AB22 | 12*3.5″ drives（SATA/SAS）EXP2*USB3.0+1*VGA | 4*2.5″ drives（SATA/SAS/NVME）4*x8+2*x16 PCIE 5.01*RJ45 management interface2*USB3.01*VGA 1300W redundant power | 2* Heat Sinks，TDP≥270W 1*raid card connection cable，adapted to 95 series raid cards 12*3.5 hard drive brackets，compatible with 2.5″ drives 4*2.5 hard drive brackets |
| E12000 ABC2 （Custom） | 12*3.5″ drives（SATA/SAS）EXP2*USB3.0+1*VGA | 2*2.5″ drives（SATA/SAS）6*x8+2*x16 PCIE 5.01*RJ45 management interface2*USB3.01*VGA 1300W redundant power | 2* Heat Sinks，TDP≥270W 1*raid card connection cable，adapted to 95 series raid cards 12*3.5 hard drive brackets，compatible with 2.5″ drives 2*2.5 hard drive brackets |
| N12000 ABNN | 12*3.5″ drives（SATA/SAS/NVME）2*USB3.0+1*VGA | 4*x8+2*x16 PCIE 5.01*RJ45 management interface2*USB3.01*VGA 1300W redundant power | 2* Heat Sinks，TDP≥270W 2*raid card connection cable，adapted to 95 series raid cards 12*3.5 hard drive brackets，compatible with 2.5″ drives |
| N12000 ABCN | 12*3.5″ drives（SATA/SAS/NVME）2*USB3.0+1*VGA | 6*x8+2*x16 PCIE 5.01*RJ45 management interface2*USB3.01*VGA 1300W redundant power | 2* Heat Sinks，TDP≥270W 2*raid card connection cable，adapted to 95 series raid cards 12*3.5 hard drive brackets，compatible with 2.5″ drives |
| N12000 ABN2 | 12*3.5″ drives（SATA/SAS/NVME）2*USB3.0+1*VGA | 2*2.5″ drives（SATA/SAS）4*x8+2*x16 PCIE 5.01*RJ45 management interface2*USB3.01*VGA 1300W redundant power | 2* Heat Sinks，TDP≥270W 2*raid card connection cable，adapted to 95 series raid cards 12*3.5 hard drive bracket，compatible with 2.5″ drives 2*2.5 hard drive brackets |
| N12000 AB22 | 12*3.5″ drives（SATA/SAS/NVME）2*USB3.0+1*VGA | 4*2.5″ drives（SATA/SAS/NVME）4*x8+2*x16 PCIE 5.01*RJ45 management interface2*USB3.01*VGA 1300W redundant power | 2* Heat Sinks，TDP≥270W 2*raid card connection cable，adapted to 95 series raid cards 12*3.5 hard drive bracket，compatible with 2.5″ drives 4*2.5 hard drive brackets |
| N12000 ABC2 （Custom） | 12*3.5″ drives（SATA/SAS/NVME）2*USB3.0+1*VGA | 2*2.5″ drives（SATA/SAS）6*x8+2*x16 PCIE 5.01*RJ45 management interface2*USB3.01*VGA 1300W redundant power | 2* Heat Sinks，TDP≥270W 2*raid card connection cable，adapted to 95 series raid cards 12*3.5 hard drive bracket，compatible with 2.5″ drives 2*2.5 hard drive bracket |
Order Information-24 Slots
| Part Number | Product Configuration | ||
| Front Configuration | Rear Configuration | Kits | |
| S24000 ABNN | 24*2.5” (SATA/SAS)2*USB3.0+1*VGA | 4*x8+2*x16 PCIE 5.01*RJ45 management2*USB3.01*VGA 1300W redundant power supplies | 2*heat sinks, TDP≥270W 3*raid card cable applicable for 95 series of raid cards 24*2.5” hard drive brackets |
| S24000 ABCN | 24*2.5”(SATA/SAS)2*USB3.0+1*VGA | 6*x8+2*x16 PCIE 5.01*RJ45 management2*USB3.01*VGA 1300W redundant power supplies | 2*heat sinks, TDP≥270W 3*raid card cable applicable for 95 series of raid cards 24*2.5” hard drive brackets |
| S24000 ABN2 | 24*2.5”(SATA/SAS)2*USB3.0+1*VGA | 2*2.5”(SATA/SAS)4*x8+2*x16 PCIE 5.01*RJ45 management2*USB3.01*VGA 1300W redundant power supplies | 2*heat sinks, TDP≥270W 3*raid card cable applicable for 95 series of raid cards 26*2.5” hard drive brackets |
| S24000 AB22 | 24*2.5”(SATA/SAS)2*USB3.0+1*VGA | 4*2.5”(SATA/SAS/NVME)4*x8+2*x16 PCIE 5.01*RJ45 management2*USB3.01*VGA 1300W redundant power supplies | 2*heat sinks, TDP≥270W 3*raid card cable applicable for 95 series of raid cards 28*2.5” hard drive brackets |
| S24000 ABC2 (custom) | 24*2.5”(SATA/SAS)2*USB3.0+1*VGA | 2*2.5”(SATA/SAS)6*x8+2*x16 PCIE 5.01*RJ45 management2*USB3.01*VGA 1300W redundant power supplies | 2*heat sinks, TDP≥270W 3*raid card cable applicable for 95 series of raid cards 26*2.5” hard drive brackets |
| E24000 ABNN | 24*2.5”(SATA/SAS)EXP2*USB3.0+1*VGA | 4*x8+2*x16 PCIE 5.01*RJ45management2*USB3.01*VGA 1300W redundant power supplies | 2*heat sinks, TDP≥270W 2*raid card cable applicable for 95 series of raid cards 24*2.5” hard drive brackets |
| E24000 ABCN | 24*2.5”(SATA/SAS)EXP2*USB3.0+1*VGA | 6*x8+2*x16 PCIE 5.01*RJ45management2*USB3.01*VGA 1300W redundant power supplies | 2*heat sinks, TDP≥270W 2*raid card cable applicable for 95 series of raid cards 24*2.5” hard drive brackets |
| E24000 ABN2 | 24*2.5”(SATA/SAS)EXP2*USB3.0+1*VGA | 2*2.5”(SATA/SAS)4*x8+2*x16 PCIE 5.01*RJ45management2*USB3.01*VGA 1300W redundant power supplies | 2*heat sinks, TDP≥270W 2*raid card cable applicable for 95 series of raid cards 26*2.5” hard drive brackets |
| E24000 AB22 | 24*2.5”(SATA/SAS)EXP2*USB3.0+1*VGA | 4*2.5”(SATA/SAS/NVME)4*x8+2*x16 PCIE 5.01*RJ45management2*USB3.01*VGA 1300W redundant power supplies | 2*heat sinks, TDP≥270W 2*raid card cable applicable for 95 series of raid cards 28*2.5” hard drive brackets |
| E24000 ABC2 (custom) | 24*2.5”(SATA/SAS)EXP2*USB3.0+1*VGA | 2*2.5”(SATA/SAS)6*x8+2*x16 PCIE 5.01*RJ45management2*USB3.01*VGA 1300W redundant power supplies | 2*heat sinks, TDP≥270W 2*raid card cable applicable for 95 series of raid cards 26*2.5” hard drive brackets |
| N24000 ABNN | 24*2.5” (NVME Only)2*USB3.0+1*VGA | 2*x8+2*x16 PCIE 5.01*RJ45management2*USB3.01*VGA 1300W redundant power supplies | 2*heat sinks, TDP≥270W 24*2.5” hard drive brackets12*NVME CABLE |
| N24000 ABN2 | 24*2.5” (NVME Only)2*USB3.0+1*VGA | 2*2.5”(SATA/SAS)2*x8+2*x16 PCIE 5.01*RJ45management2*USB3.01*VGA 1300W redundant power supplies | 2*heat sinks, TDP≥270W 26*2.5” hard drive brackets12*NVME CABLE |
