SWITCH

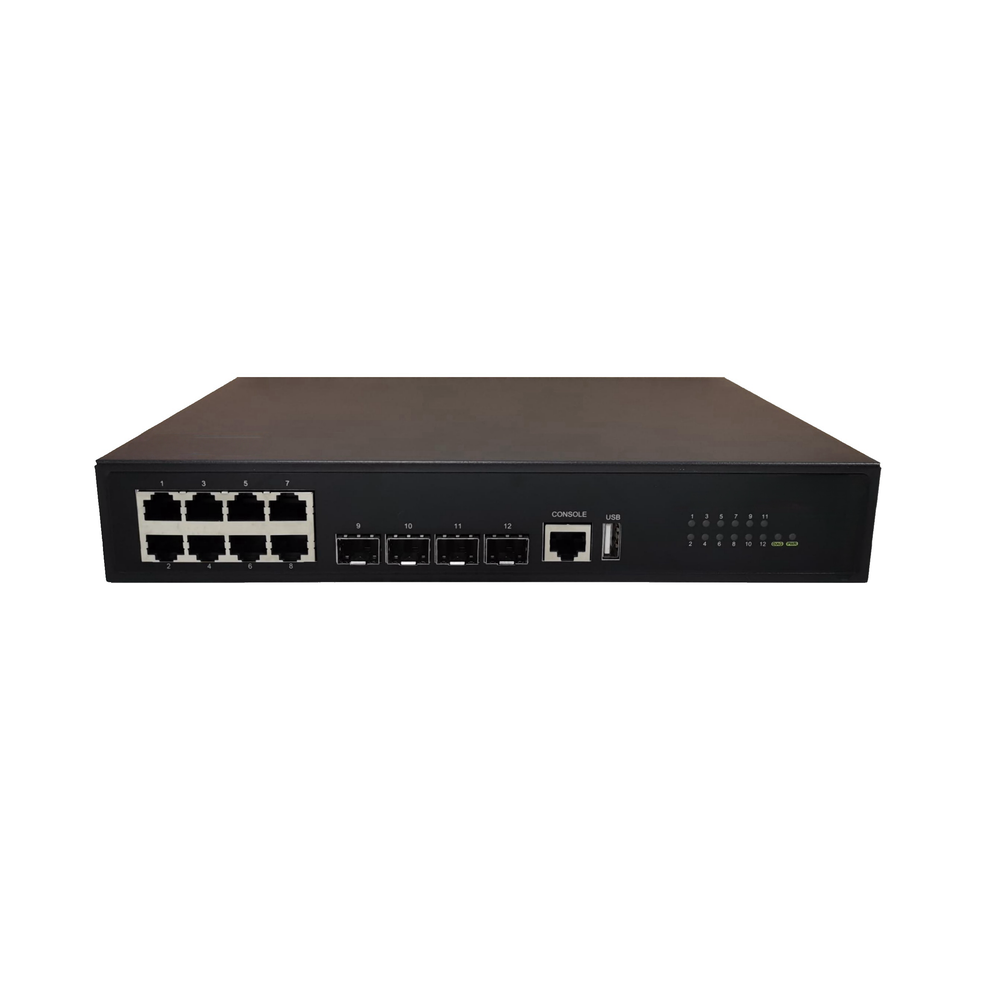

NS4700-12X-SI
- 8*10/100/1000Base-T + 4*10GE(SFP+)
- 1*Console, 1*USB, 1*RJ45 management port

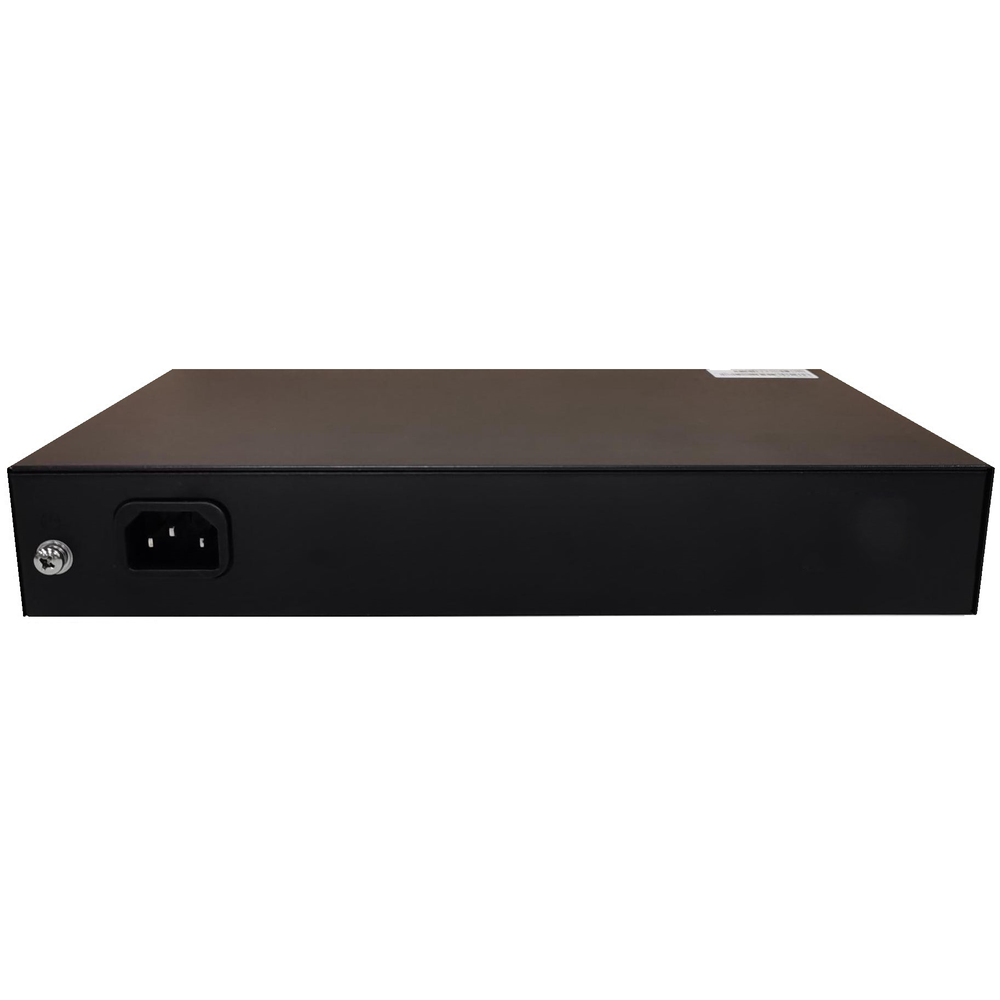

- AC power supply
- Switching capacity: 96Gbps
- Forwarding rate: 71.4Mpps
Products Specification
| Item | NS4700-12X-SI | NS4700-28X-SI | NS4700-52X-SI | |
| Ports | 8*10/100/1000Base-T + 4*1/10GE(SFP+) Auto-MIDX | 24*10/100/1000Base-T + 4 x 1/10GE(SFP+) Auto-MIDX | 48*10/100/1000Base-T + 4*1/10GE(SFP+) Auto-MIDX | |
| Management port | 1*Console port | 1*Console port | 1*Console port | |
| 1*USB2.0 interface | 1*USB2.0 interface | 1*USB2.0 interface | ||
| – | 1*Reset key | 1*Reset key | ||
| Performance | ||||
| Switching Capacity | 96Gbps | 128Gbps | 176Gbps | |
| Forwarding Rate | 71.4Mpps | 95Mpps | 131Mbps | |
| MAC ADDRESS | 16K | 16K | 16K | |
| Jumbo Frame | 10K bytes | 10K bytes | 10K bytes | |
| Packet Buffer | 12MBits | 12MBits | 24MBits | |
| ACL Table | 512 | 512 | 512 | |
| Queues per port | 8 | 8 | 8 | |
| VLAN TABLE | 4K | 4K | 4K | |
| Physical | ||||
| Dimension(W*H*D) | 266mm*44mm*161mm | 440mm*44mm*170mm | 440mm*44mm*280mm | |
| Power Input | 100~240VAC, 50~60Hz | 100~240VAC, 50~60Hz | 100~240VAC, 50~60Hz | |
| Power Consumption | <15W | 21W | <50W | |
| Cooling | Passive | Passive | Active | |
| Temperature | Working 0°C~50°C, Storage -40°C~70°C | Working 0°C~50°C, Storage -40°C~70°C | Working 0°C~50°C, Storage -40°C~70°C | |
| Relative Humidity | 5%~95%, non-condensing | 5%~95%, non-condensing | 5%~95%, non-condensing | |
| EMC Safety | CE, RoHS | CE, RoHS | CE, RoHS | |
| PoE | NA | NA | NA | |
| Main Features | ||||
| Forwarding | Storage and Forwarding | |||
| VLAN | Port-based VLAN, IEEE802.1Q, private VLAN, Protocol VLAN, Voice VLAN, MAC VLAN Normal QinQ, Flexible QinQ VLAN Translation, N:1 VLAN Translation | |||
| L3 Features | Static Routing, PBR | |||
| DHCP | IPv4/IPv6 DHCP Client, IPv4/IPv6 DHCP Relay Option 82, Option 37/38 IPv4/IPv6 DHCP Snooping, IPv4/IPv6 DHCP Server | |||
| Reliability | Spanning Tree | 802.1D STP, 802.1W RSTP, 802.1S MSTP Root Guard, BPDU Guard, BPDU Forwarding, TCN filtering | ||
| LACP | 64 groups / 8 ports | |||
| L2 Ring Protection | MRPP ERPS (G.8032) Loopback Detection Fast Link | |||
| Security | IP ACL, MAC ACL, MAC-IP ACL, User-Defined ACL Time Range ACL ACL rules can be configured to port, VLAN Storm Control based on packets Port Security, MAC Limit based on VLAN and Port Anti-ARP-Spoofing, Anti-ARP-Scan, ARP Binding ND Snooping DAI IEEE 802.1x Authentication, Authorization, Accounting Radius, TACACS+ | ||
| Multicast | IGMP v1/v2/v3 snooping, IGMP Proxy, IGMP v3 MLD v1/v2 snooping | ||
| QoS | 8 Queues Per Port Bandwidth Control Flow Redirect Classification based on ACL, VLAN ID, COS, TOS, DSCP, Policing Based on Port and VLAN Single Rate single barrel double color for Policing SP DWRR SDWRR，SP+DWRR for Scheduling Match the IP fragmentation of a message | ||
| Maintenance and Operation Management | TFTP/FTP CLI, Telnet, Console Web/SSL (IPv4/IPv6) SSH (IPv4/IPv6) SNMPv1/v2c/v3 SNMP Trap Public & Private MIB interface RMON 1,2,3,9 Ping, Trace Route Radius Authentication Syslog (IPv4/IPv6) SNTP/NTP (IPv4/IPv6) Dual IMG, Multiple Configuration Files Port Mirror, RSPAN sFlow OAM EFM VCT, DDM ULDP (like Cisco UDLD) LLDP/LLDP MED | ||
| Green Energy | Fanless (12X & 28X), adjusted-speed fan(52X) | ||
| Data Center Features | VSF(Virtual Switch Framework) | ||
