SWITCH

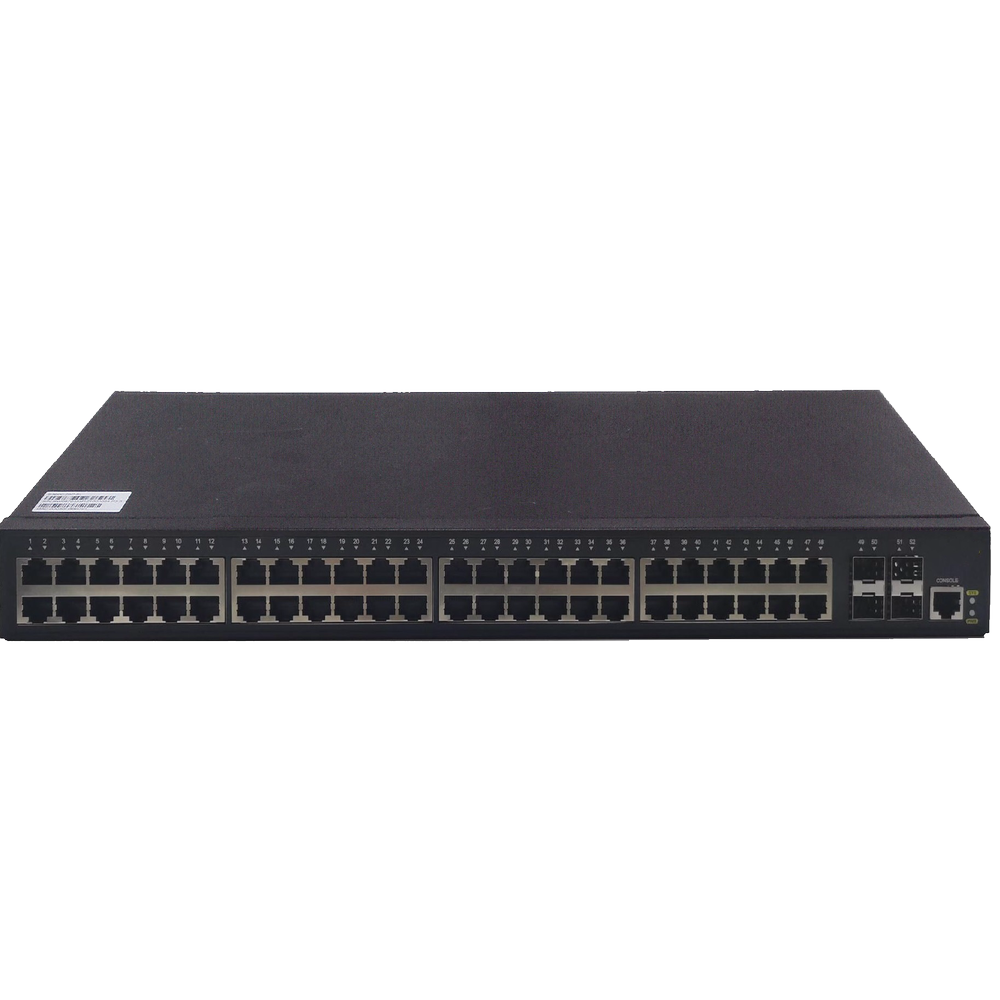

NS4700-52P-SI

  • 48*10/100/1000Base-T+4*100/1000Base-X (SFP)
  • 1*Console, 1*Reset port
  • AC power supply
  • Switching capacity: 104Gbps
  • Forwarding rate: 77.4Mpps

Products Specification

ItemNS4700-52P-SI
Ports48*10/100/1000Base-T + 4*100/1000Base-X (SFP) Auto-MIDX
Performance
Switching Capacity104Gbps
Forwarding Rate77.4Mpps
MAC ADDRESS16K
Jumbo Frame12K
ACL Table2304
Queues per port8
VLAN TABLE4K
Physical
Dimension(W×H×D)442mm*43.6mm*240mm
Power Input100~240VAC, 50~60Hz
Power Consumption36W
CoolingActive(R2.0) / Passive(R3.0)
TemperatureWorking 0°C~50°C, Storage -40°C~70°C
Relative Humidity5%~95%, non-condensing
EMC SafetyCE, RoHS
Main Features
ForwardingStorage and Forwarding
VLANPort-based VLAN, IEEE802.1Q, private VLAN, Protocol VLAN, Voice VLAN, MAC VLAN
Normal QinQ, Selective QinQ, Flexible QinQ
VLAN Translation, N:1 VLAN Translation
DHCPIPv4/IPv6 DHCP Client, IPv4/IPv6 DHCP Relay
Option 82, Option 37/38
IPv4/IPv6 DHCP Snooping, IPv4/IPv6 DHCP Server
ReliabilitySpanning Tree802.1D STP, 802.1W RSTP, 802.1S MSTP
Root Guard, BPDU Guard, BPDU Forwarding
LACP16 groups / 8 ports
L2 Ring ProtectionMRPP
ITU-T G.8032
Loopback Detection
Fast Link
SecurityIP ACL, MAC ACL, MAC-IP ACL, User-Defined ACL
Time Range ACL
ACL rules can be configured to port, VLAN
Storm Control based on packets and bytes
Port Security, MAC Limit based on VLAN and Port
Anti-ARP-Spoofing, Anti-ARP-Scan, ARP Binding
ND Snooping
DAI
IEEE 802.1x Authentication, Authorization, Accounting
Radius, TACACS+
MulticastIGMP v1/v2/v3 snooping, IGMP Fast leave
MVR
MLD v1/v2 snooping
IPv4/IPv6 DCSCM
QoS8 Queues Per Port
Bandwidth Control
Flow Redirect
Classification based on ACL, VLAN ID, COS, TOS, DSCP
Policing Based on Port and VLAN
Single Rate single barrel double color for Policing
Remark DSCP, COS/802.1p, Precedence, TOS
SP, WRR, SWRR, WDRR for Scheduling
Match the IP fragmentation of a message
Maintenance and Operation ManagementTFTP/FTP
CLI, Telnet, Console, Reset
Web/SSL (IPv4/IPv6)
SSH (IPv4/IPv6)
SNMPv1/v2c/v3
SNMP Trap
Public & Private MIB interface
RMON 1,2,3,9
Ping, Trace Route
Radius Authentication
Syslog (IPv4/IPv6)
SNTP/NTP (IPv4/IPv6)
Dual IMG, Multiple Configuration Files
Port Mirror, CPU Mirror, RSPAN
sFlow (NS4700-28P/52P-SI)
OAM EFM VCT, DDM
ULDP (like Cisco UDLD)
LLDP/LLDP MED
Green EnergyIEEE 802.3az (Energy Efficient Ethernet)
Fanless (10P and 28P)
LED Shut-off
