SWITCH

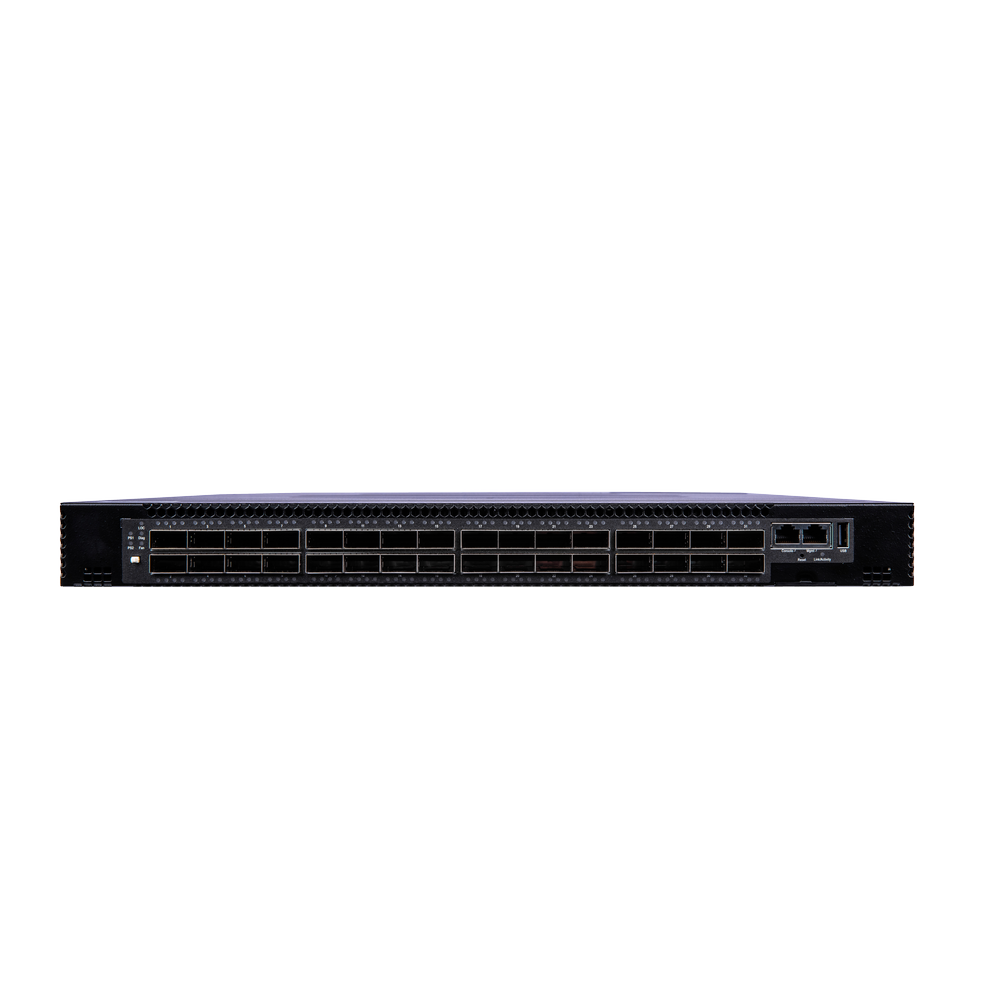

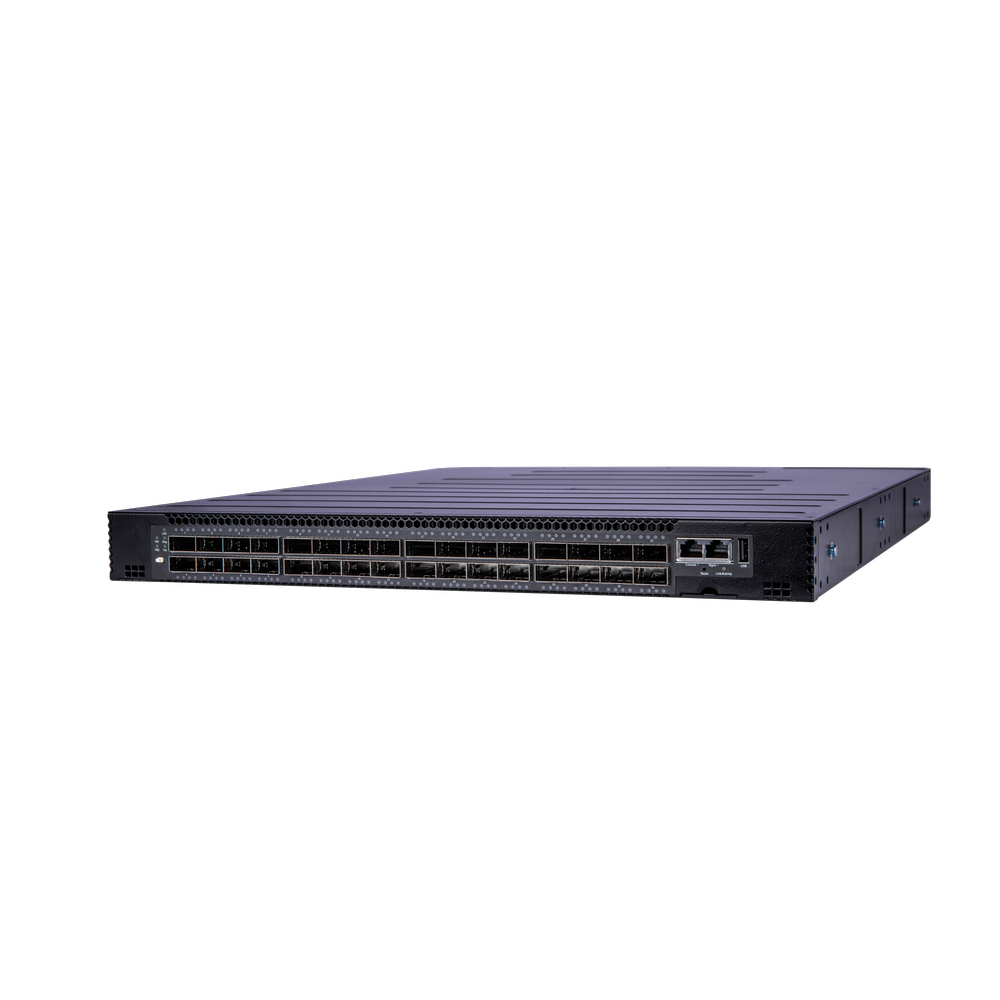

NS6680-32CQ-HI
- 32*100G QSFP28

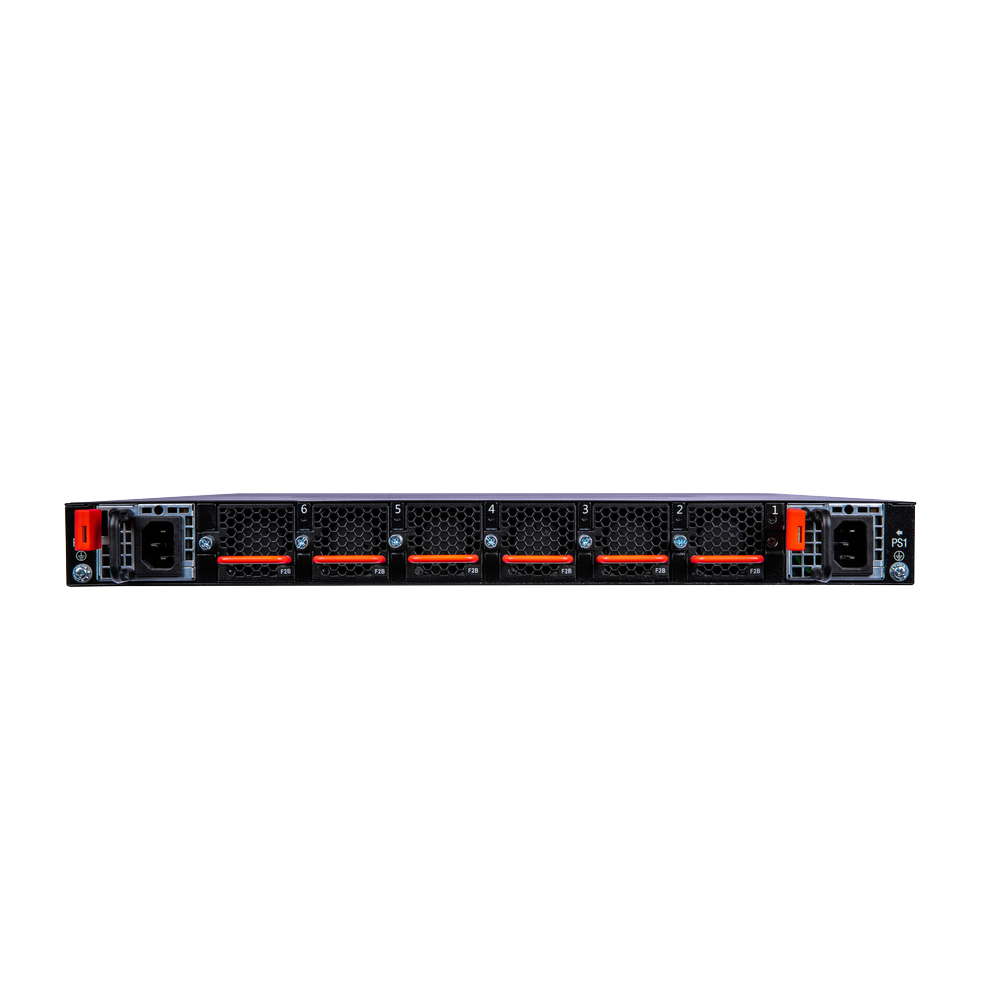

- AC+AC Power Supply
- 1*Console, 1*USB, 1*100/1000Base-T MGMT
- Forwarding performance: 4.7Bpps
- Switching capacity: 6.4Tbps
Products Specification
| Item | NS6680-32CQ-HI | NS6680-48S6Q-HI |
| Physical port | 32*100G QSFP28 | 48*25G/10G (SFP28) + 6*100G QSFP28 |
| Management port | Console port RJ45 100/1000Mbps RJ45 Ethernet Management port USB2.0 Management port | |
| Performance | ||
| Switching Capacity | 6.4Tbps | 3.6Tbps |
| Forwarding Rate | 4.7Bpps | 2.6Bpps |
| MAC Address | 8K min./104K max. | |
| ARP Table | 8K min./32K max. | |
| Routing Table | 8K min./128K max. | |
| Physical | ||
| Dimension(W*H*D) | 438mm*44mm*515mm | 438mm*44mm*515mm |
| Relative Humidity | 5%~95% non-condensing | |
| Temperature | Working 0°C~45°C, storage -40°C~70°C | |
| Power Input | AC: 100~240V,50~60 Hz | |
| Power Supply | 1+1 Modular Redundant AC | |
| Power consumption | < 511w | < 550w |
| Main Features | ||
| L1, L2 Features | 9k Jumbo Frame Port Loopback Detect LLDP and LLDP-MED UDLD 802.3ad LACP, 16 groups LACP Load Balance | |
| N:1 Port Mirroring RSPAN ERSPAN | ||
| IEEEE802.1d(STP) IEEEE802.1w(RSTP) IEEEE802.1s(MSTP) Root Guard BPDU Guard BPDU Tunnel ERPS(ITU-T G.8032) | ||
| 802.1Q, 4096 VLAN MAC VLAN, VOICE VLAN, Private VLAN, Protocol VLAN, Multicast VLAN QinQ, Selective QinQ, Flexible QinQ GVRP N:1 VLAN Translation Broadcast / Multicast / Unicast Storm Control | ||
| IGMP v1/v2/v3 Snooping and L2 Query ND Snooping MLDv1/v2 Snooping | ||
| Port Security | ||
| Flow control: HOL, IEEE802.3x Bandwidth Control | ||
| L3 Features | Static Routing, RIPv1/v2, OSPFv2, BGP4 OSPFv3, BGP4+ OSPF Multiple Process LPM Routing Policy-based Routing (PBR) for IPv4 and IPv6 VRRP URPF ECMP BFD | |
| IGMP v1/v2/v3, IGMP Proxy DVMRP, PIM-DM, PIM-SM, PIM-SSM, any cast RP, MSDP Static Multicast Route Multicast Receive Control Illegal Multicast Source Detection | ||
| ARP Guard, Local ARP Proxy, Proxy ARP, ARP Binding, Gratuitous ARP, ARP Limit Anti ARP Cheat, Anti ARP Scan | ||
| DNS Client | ||
| GRE Tunnel | ||
| IPv6 | 6to4 Tunnel, Configured Tunnel, ISATAP Tunnel, GRE Tunnel ICMPv6, ND, DNSv6 IPv6 LPM Routing, IPv6 Policy-Based Routing (PBR) IPv6 VRRPv3, IPv6 URPF, IPv6 RA RIPng, OSPFv3, BGP4+ MLD Snooping, IPv6 multicast VLAN MLDv1/v2, PIM-SM/DM for IPv6, IPv6 Anycast RP, IPv6 ACL, IPv6 QOS | |
| MPLS | MPLS, VRF, LDP | |
| MPLS L3 VPN, MPLS L2 VPN(VPLS), VPWS | ||
| QoS | 8 Queues SWRR, SP, WRR, DWRR, SDWRR, WRED Traffic Classification Based on 802.1p CoS, ToS, DiffServ DSCP, ACL, port number Traffic Shaping PRI Mark/Remark | |
| ACL | IP ACL, MAC ACL, IP-MAC ACL Standard and Expanded ACL Based on source/destination IP or MAC, IP protocol, TCP/UDP port, DSCP, ToS, IP Precedence), VLAN, Tag/Untag, CoS REDIRECT and accounting-based ACL Rules can be configured to port, VLAN Time ranged ACL | |
| Security | 802.1x AAA Port, MAC based authentication Accounting based on time length and traffic Guest VLAN and Auto VLAN | |
| RADIUS for IPv4 and IPv6 | ||
| TACACS+ for IPv4 and IPv6 | ||
| MAB | ||
| DHCPv4/v6 | DHCP Server/Client for IPv4/IPv6 DHCP Relay/Option 82 DHCP Snooping/Option 82 | |
| Traffic Monitor | sFlow Traffic Analysis | |
| Security Network Management | CLI, WEB, Telnet, SNMPv1/v2c/v3 through IPv4 and IPv6 Syslog and external Syslog server HTTP SSL SNMP MIB, SNMP TRAP FTP/TFTP SNTP/NTP RMOM 1,2,3,9 Authentication by radius SSH v1/v2 Dual firmware images/ Configuration files 802.3ah OAM, 802.1ag OAM | |
| Data Center Features | VXLAN MLAG Telemetry Netconf RoCE PFC & ECN VSF (Virtual Switch Framework) | |
